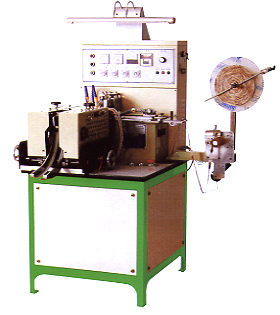

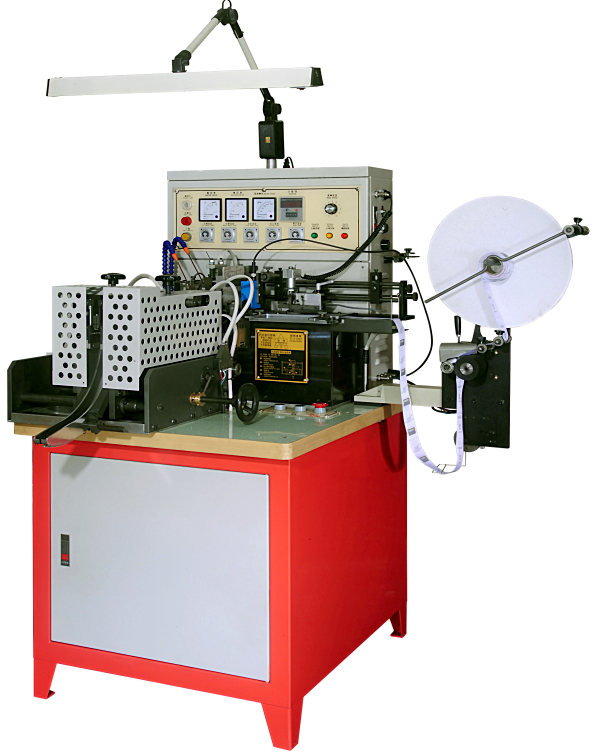

Automatic Label Cutting & Envelope Folding Machine

EF-370

Feature:

• Mold EF-370 is Suitable for label Centre Fold. Envelope Fold.
• Equipped with a photoelectronic trouble shooter to minimize the defective rate in label cutting and folding processes.
• EF-370 is easy to be operated, excellent performance, especially for cutting soft materials.

TECHNIAL DATA
---------------------------------------------

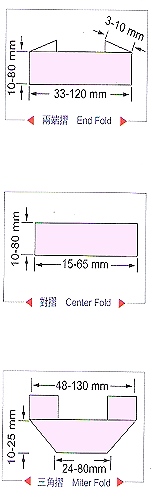

Type of folds        1.End Fold
                          2.Centrc Fold
                          3.Envelope Fold
---------------------------------------------
Cutting length     25-140mm
---------------------------------------------
Width 10-80mm
---------------------------------------------
Cutting Type        1.Cold cut
                          2.Hot cut
---------------------------------------------
Speed Infinitely variable from
0-200pieces per min.
---------------------------------------------
Counter Impulse counter with adjustable persecutor.
---------------------------------------------
Power Range 1 Φ 200V,50-60Hz,3.3kw
---------------------------------------------
Dimensions 110x1200x1400mm(H)
---------------------------------------------
Weight 300Kgs
---------------------------------------------
Horse Power 1/2HP

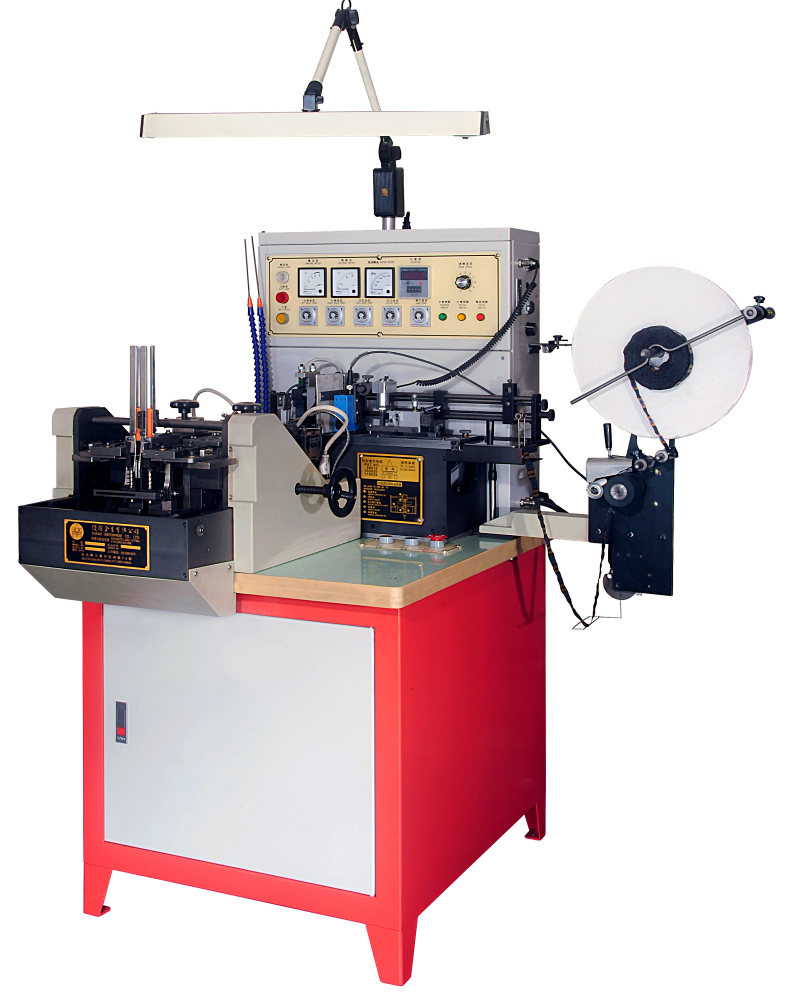

• This unique, economical model has been designed after continual improvement based on many years experience in cutting and folding labels.

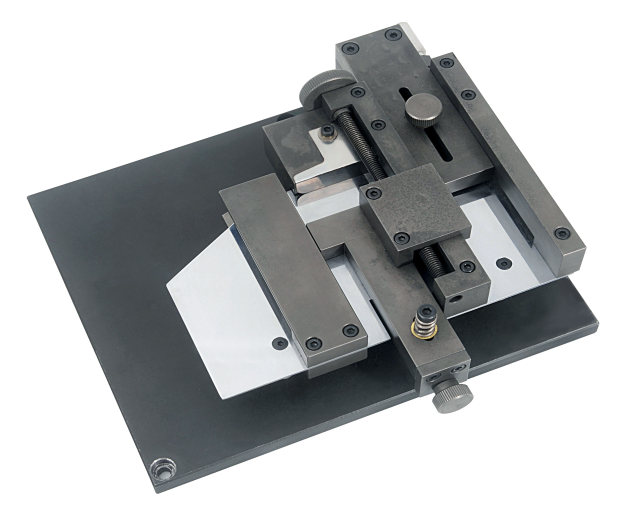

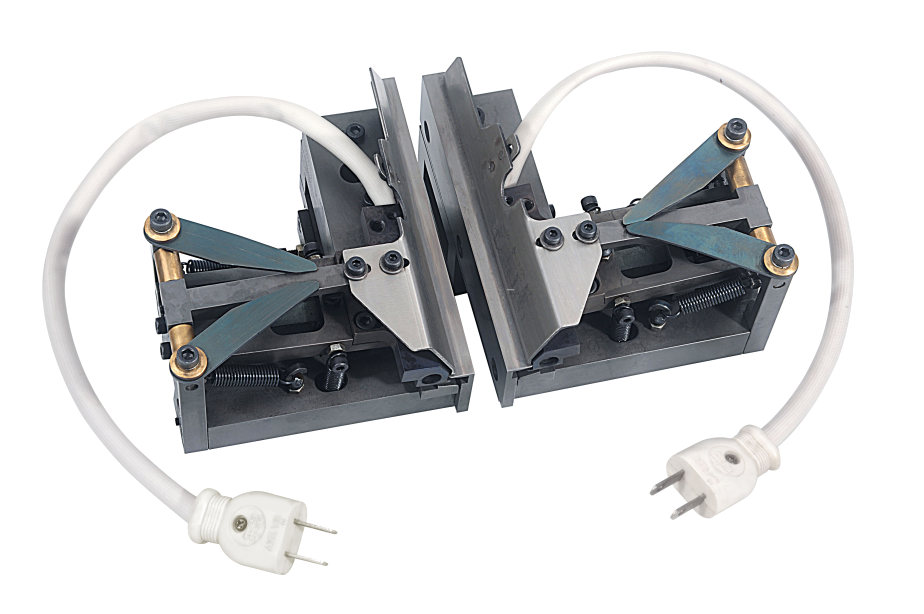

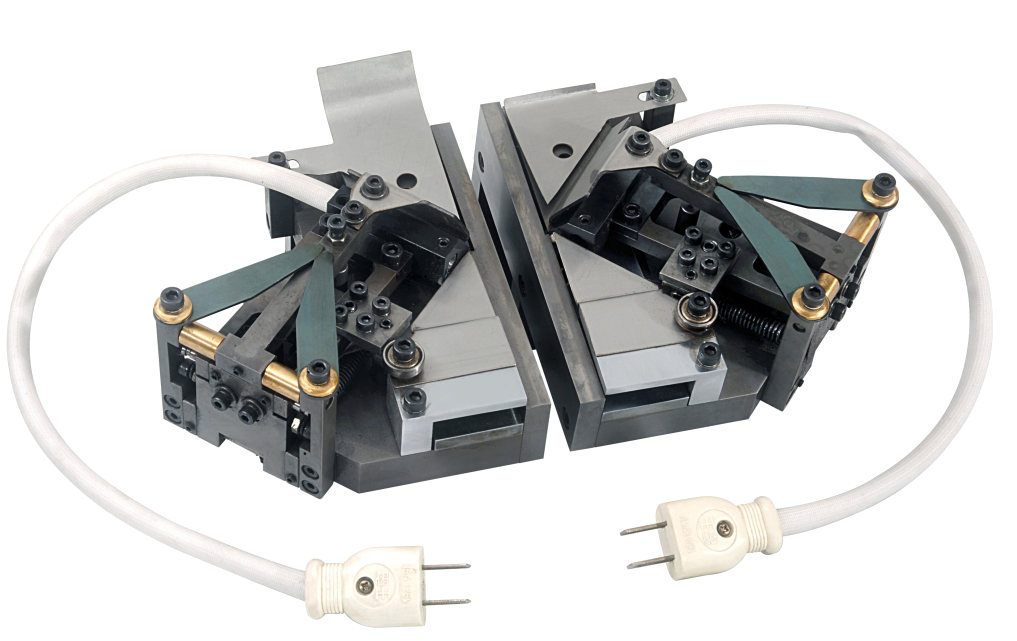

• Three label cutting and folding devices. Easy and convenient replacement of the molds by one operator only.
• Equipped with a photoelectronic trouble shooter to minimize the defective rate in label cutting and folding processes.
• FO-190 is easy to be operated, excellent performance, especially for cutting soft materials.


FO-190
