Automatic  Bobbin Winder Machine

Features:
  • Fully auto device, manpower saving, high efficiency.
  • Even forming, easy to out feed, without remaining, to reduce the loss of the yarn.
  • Electronic counter, take-up weight can be controlled freely for easy yarn replacement.
  • With yarn cutting stop device to avoid the trouble of yarn shortage.
  • High compatibility, different bobbin O.D. length can be exchanged (refer to the specification table for details).
  • Simple structure, easy to operate and maintain.
  • Low rate of breakdown, high durability.
  • High revolving speed, small volume, high working efficiency and space saving.

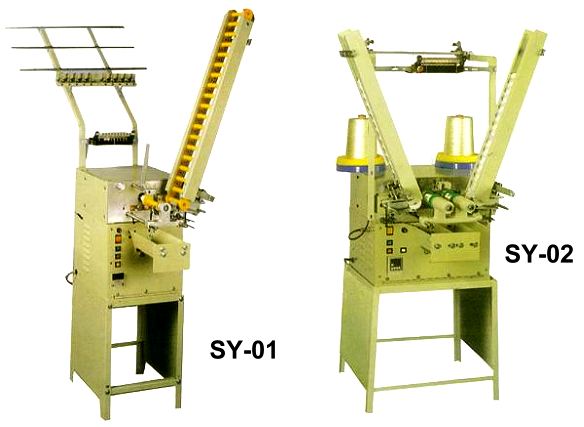

Model SY-01S SY-01 SY-02
Traverse 10 ~ 175 mm 10 ~ 210 mm 10 ~ 140 mm
Spindle 1SP 1SP 2SP
Max. Take-Up O.D. 72 mm 85 mm 55 mm
Speed 6,000 r.p.m. 3,600 r.p.m. 5,100 r.p.m.
HP 1/4 HP + 15W x 2 1/4 HP + 15W x 2 1/4 HP + 15W x 2
Power Applied 220V, 3 φ 220V, 3 φ 220V, 3 φ
Weight 73 kgs 72 kgs 92 kgs
Floor Space 780 x 580 x 1,200 mm 780 x 580 x 1,200 mm 740 x 760 x 1,560 mm
