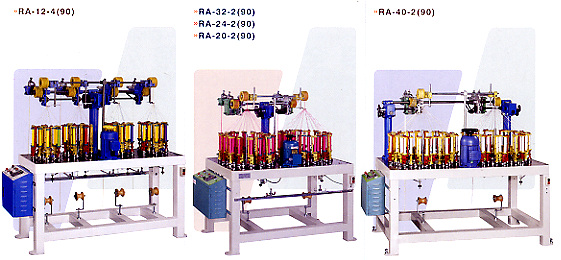

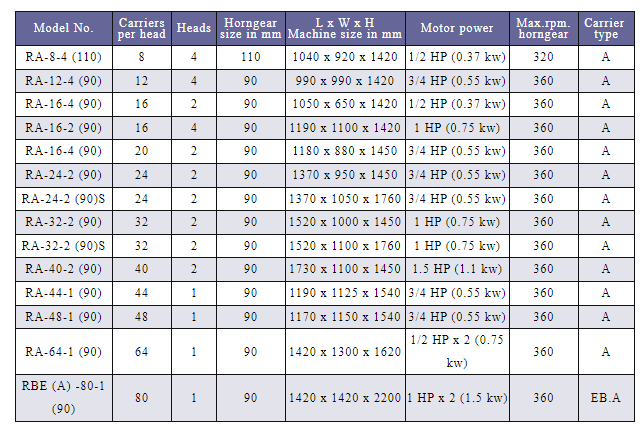

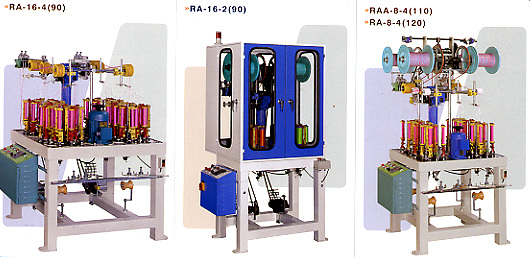

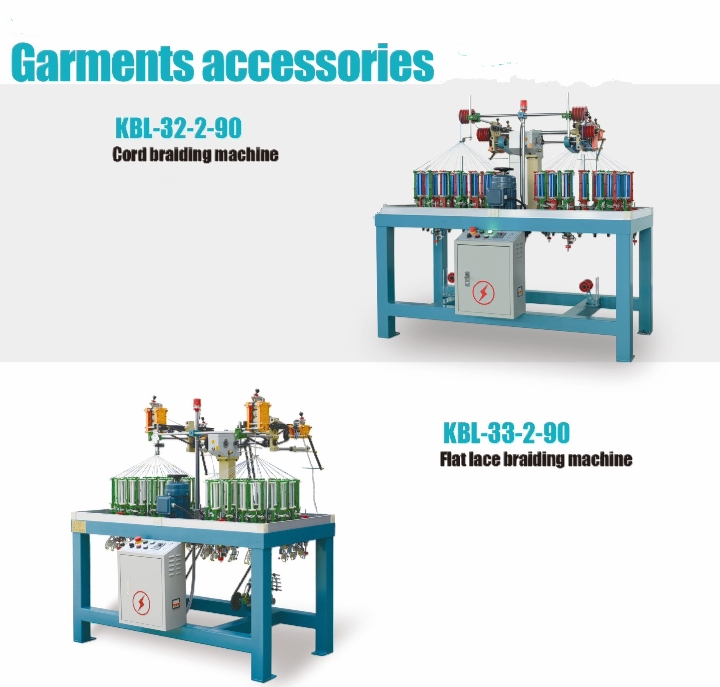

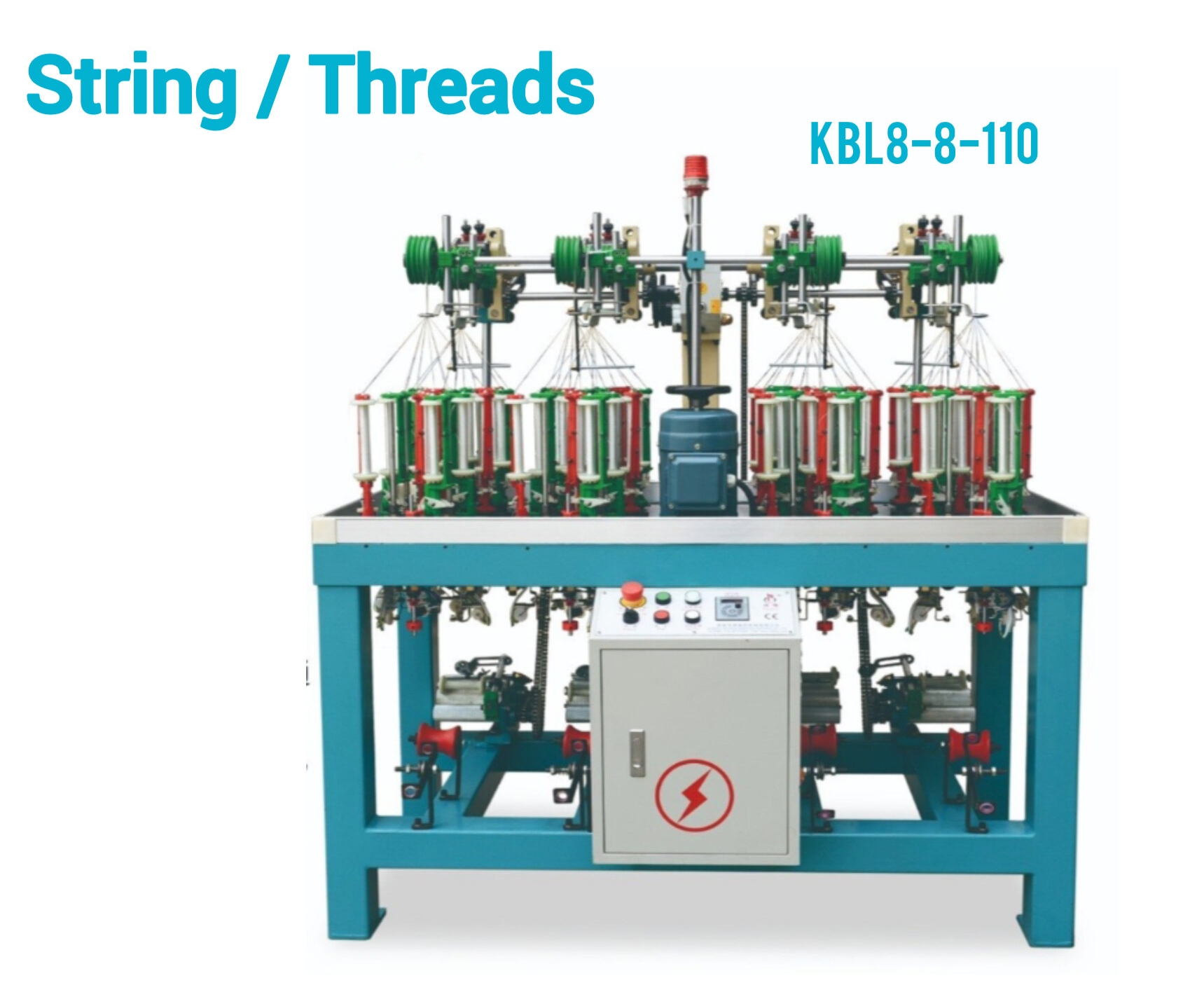

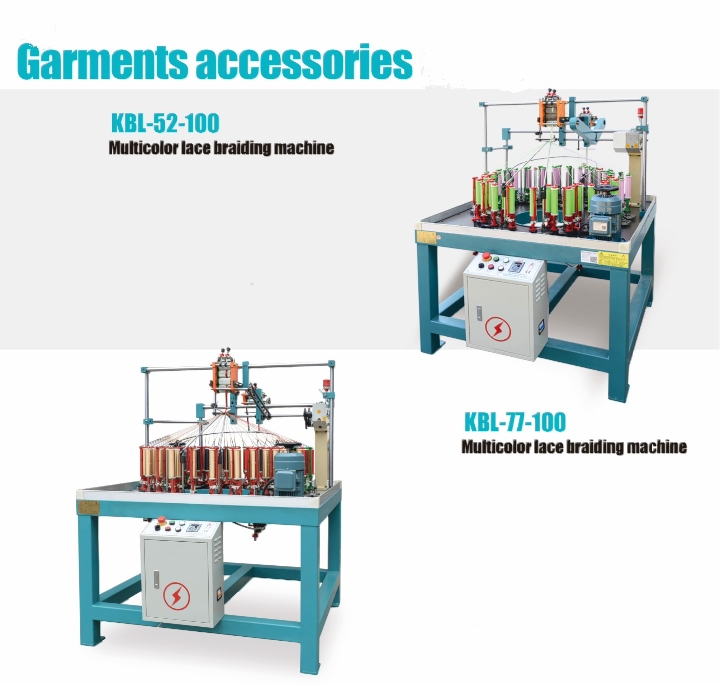

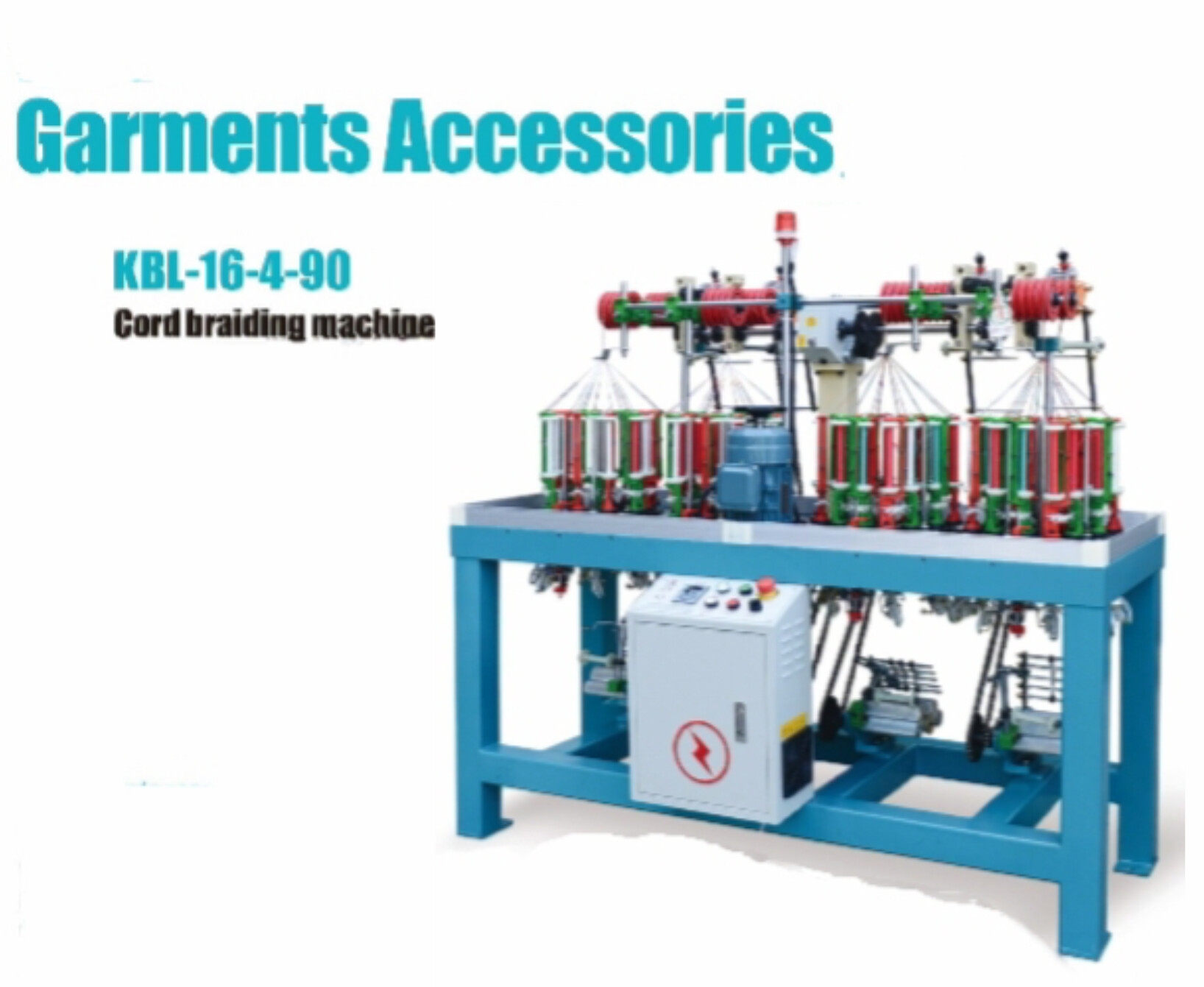

RA(90) / Round Braiding Machines







Model No.

Carriers

per head

Heads

Horngear

size in mm

L x W x H

Machine size in mm

Motor power

Max.rpm.

horngear

Carrier

type

RA-8-4 (110)

8

4

110

1040 x 920 x 1420

1/2 HP (0.37 kw)

320

A

RA-12-4 (90)

12

4

90

990 x 990 x 1420

3/4 HP (0.55 kw)

360

A

RA-16-4 (90)

16

2

90

1050 x 650 x 1420

1/2 HP (0.37 kw)

360

A

RA-16-2 (90)

16

4

90

1190 x 1100 x 1420

1 HP (0.75 kw)

360

A

RA-16-4 (90)

20

2

90

1180 x 880 x 1450

3/4 HP (0.55 kw)

360

A

RA-24-2 (90)

24

2

90

1370 x 950 x 1450

3/4 HP (0.55 kw)

360

A

RA-24-2 (90)S

24

2

90

1370 x 1050 x 1760

3/4 HP (0.55 kw)

360

A

RA-32-2 (90)

32

2

90

1520 x 1000 x 1450

1 HP (0.75 kw)

360

A

RA-32-2 (90)S

32

2

90

1520 x 1100 x 1760

1 HP (0.75 kw)

360

A

RA-40-2 (90)

40

2

90

1730 x 1100 x 1450

1.5 HP (1.1 kw)

360

A

RA-44-1 (90)

44

1

90

1190 x 1125 x 1540

3/4 HP (0.55 kw)

360

A

RA-48-1 (90)

48

1

90

1170 x 1150 x 1540

3/4 HP (0.55 kw)

360

A

RA-64-1 (90)

64

1

90

1420 x 1300 x 1620

1/2 HP x 2 (0.75 kw)

360

A

RBE (A) -80-1 (90)

80

1

90

1420 x 1420 x 2200

1 HP x 2 (1.5 kw)

360

EB.A

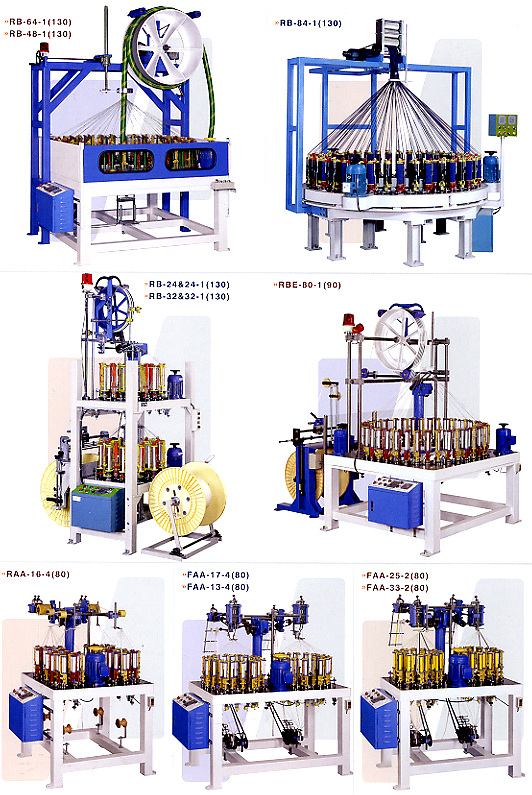

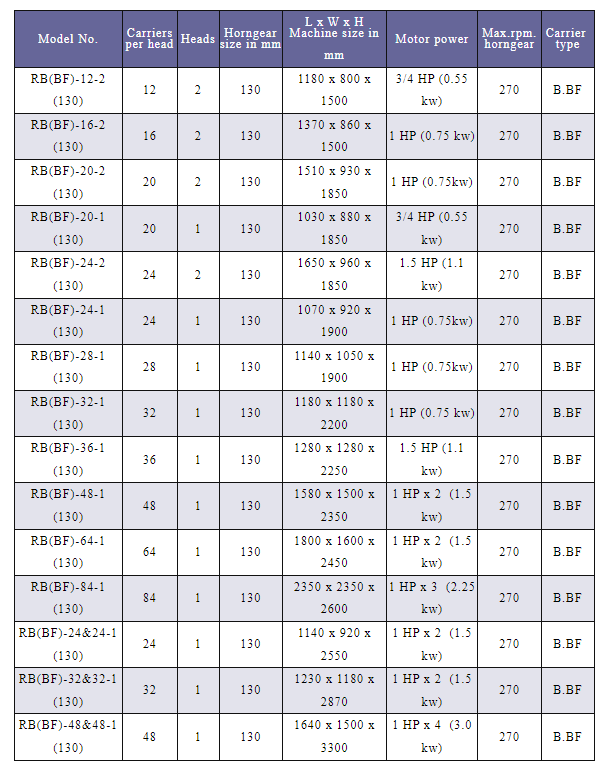

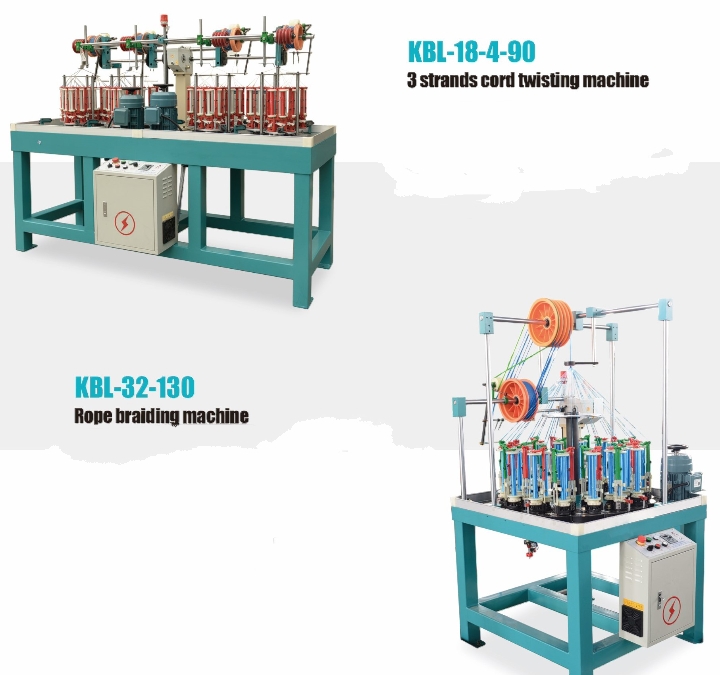

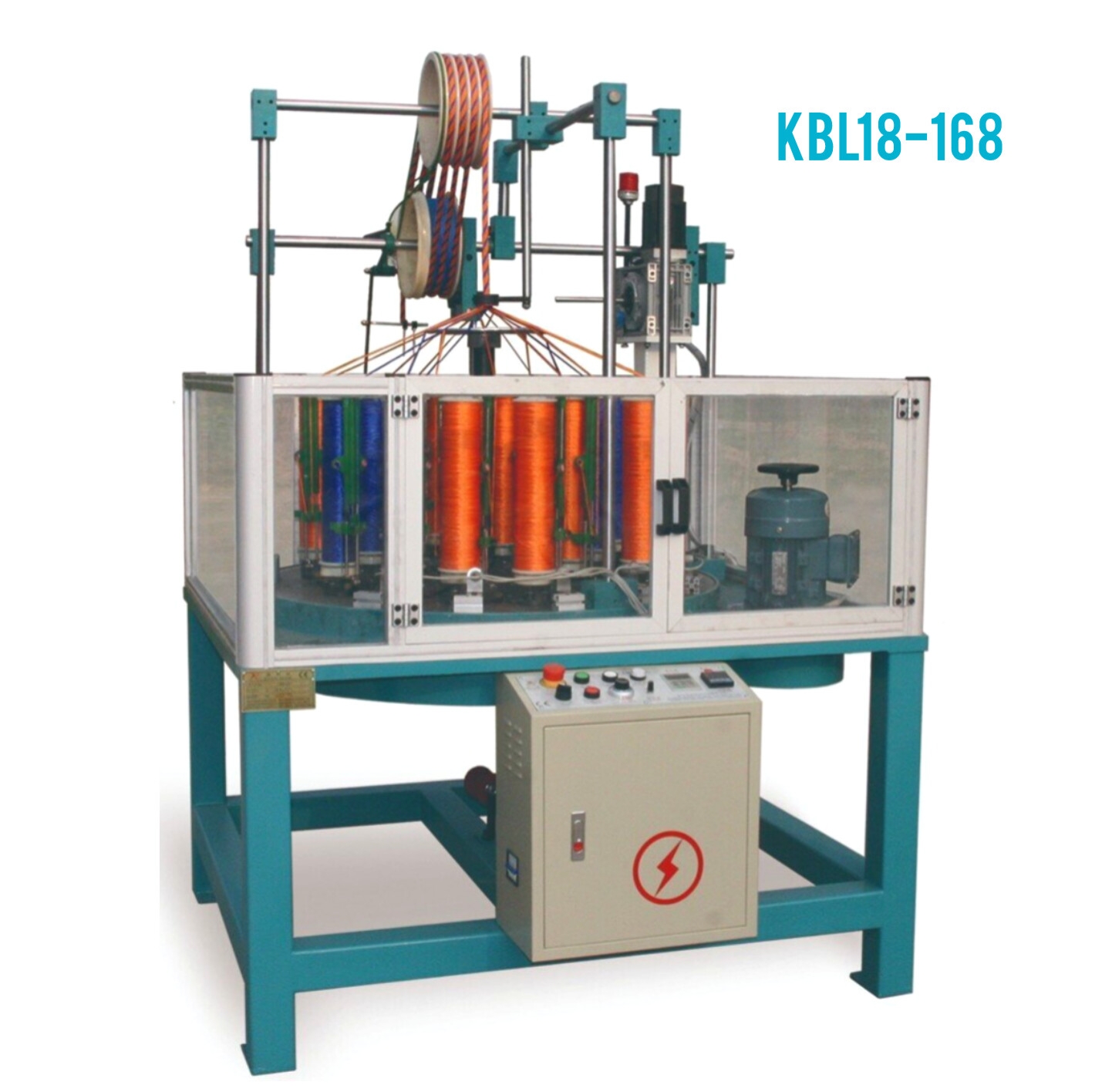

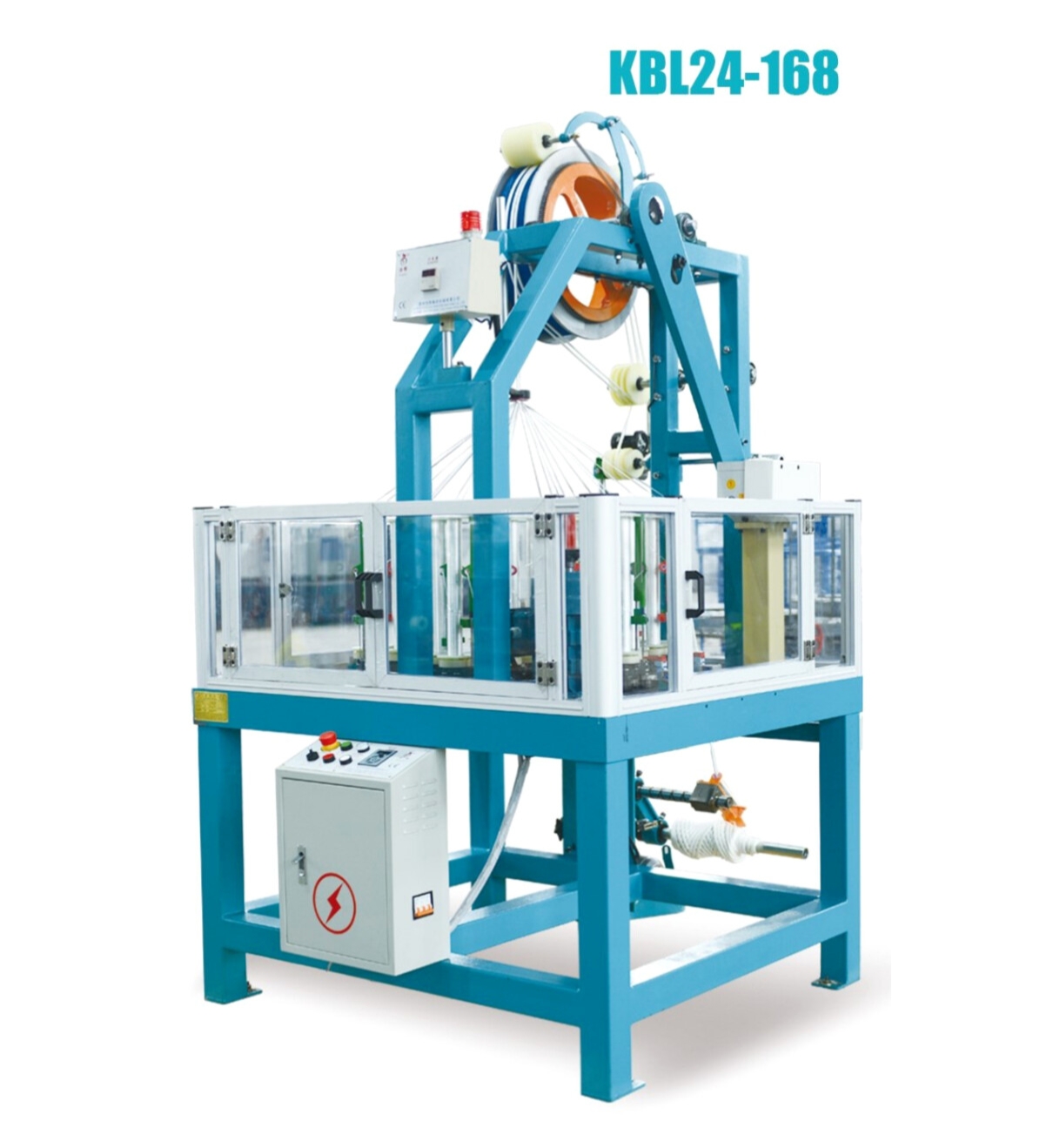

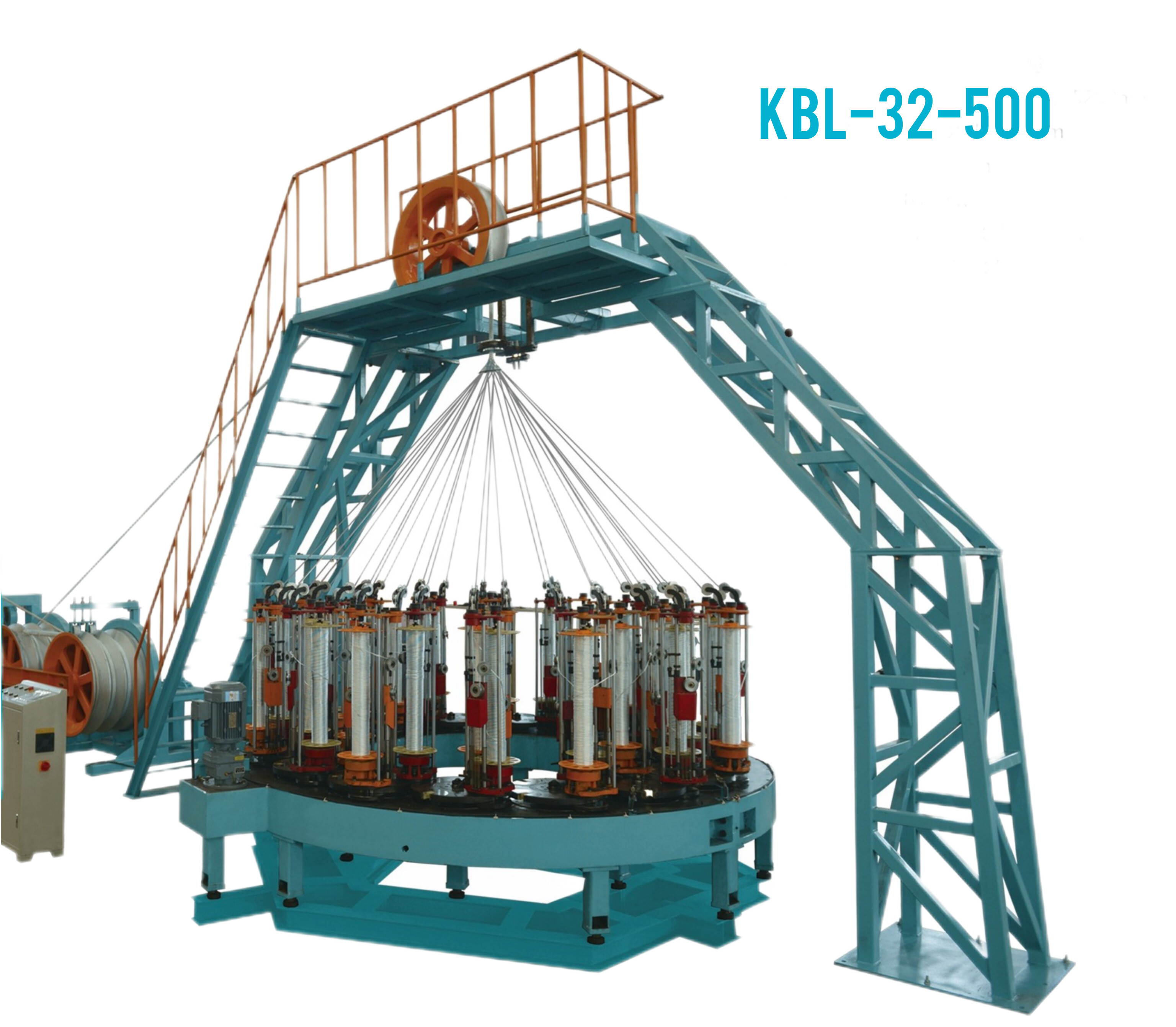

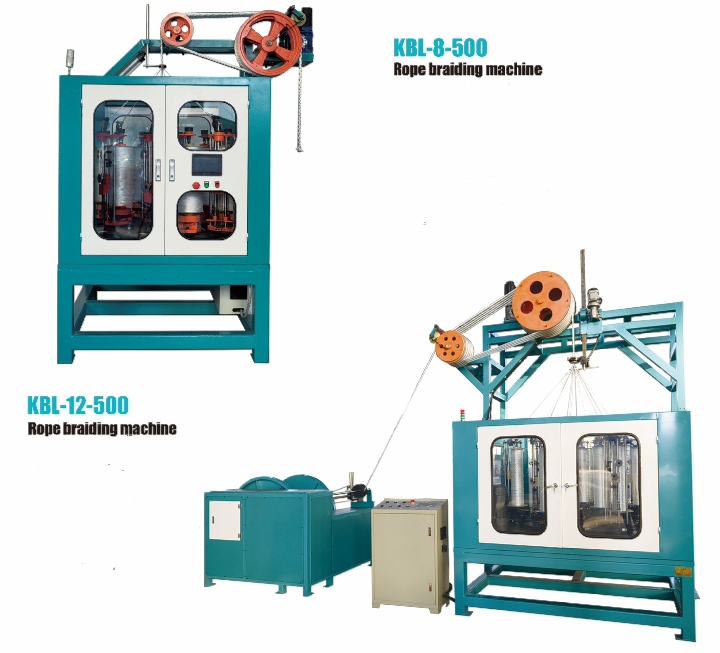

RB(130) / Round Rope / Tube Braiding Machines



Model No.

Carriers

per head

Heads

Horngear

size in mm

L x W x H

Machine size in mm

Motor power

Max.rpm.

horngear

Carrier

type

RB(BF)-12-2 (130)

12

2

130

1180 x 800 x 1500

3/4 HP (0.55 kw)

270

B.BF

RB(BF)-16-2 (130)

16

2

130

1370 x 860 x 1500

1 HP (0.75 kw)

270

B.BF

RB(BF)-20-2 (130)

20

2

130

1510 x 930 x 1850

1 HP (0.75kw)

270

B.BF

RB(BF)-20-1 (130)

20

1

130

1030 x 880 x 1850

3/4 HP (0.55 kw)

270

B.BF

RB(BF)-24-2 (130)

24

2

130

1650 x 960 x 1850

1.5 HP (1.1 kw)

270

B.BF

RB(BF)-24-1 (130)

24

1

130

1070 x 920 x 1900

1 HP (0.75kw)

270

B.BF

RB(BF)-28-1 (130)

28

1

130

1140 x 1050 x 1900

1 HP (0.75kw)

270

B.BF

RB(BF)-32-1 (130)

32

1

130

1180 x 1180 x 2200

1 HP (0.75 kw)

270

B.BF

RB(BF)-36-1 (130)

36

1

130

1280 x 1280 x 2250

1.5 HP (1.1 kw)

270

B.BF

RB(BF)-48-1 (130)

48

1

130

1580 x 1500 x 2350

1 HP x 2  (1.5 kw)

270

B.BF

RB(BF)-64-1 (130)

64

1

130

1800 x 1600 x 2450

1 HP x 2  (1.5 kw)

270

B.BF

RB(BF)-84-1 (130)

84

1

130

2350 x 2350 x 2600

1 HP x 3  (2.25 kw)

270

B.BF

RB(BF)-24&24-1 (130)

24

1

130

1140 x 920 x 2550

1 HP x 2  (1.5 kw)

270

B.BF

RB(BF)-32&32-1 (130)

32

1

130

1230 x 1180 x 2870

1 HP x 2  (1.5 kw)

270

B.BF

RB(BF)-48&48-1 (130)

48

1

130

1640 x 1500 x 3300

1 HP x 4  (3.0 kw)

270

B.BF

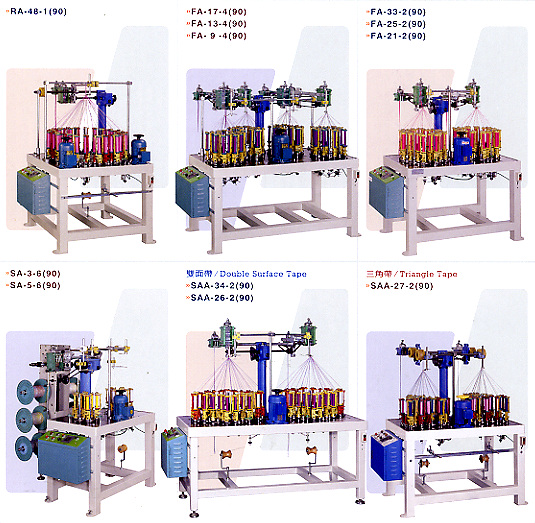

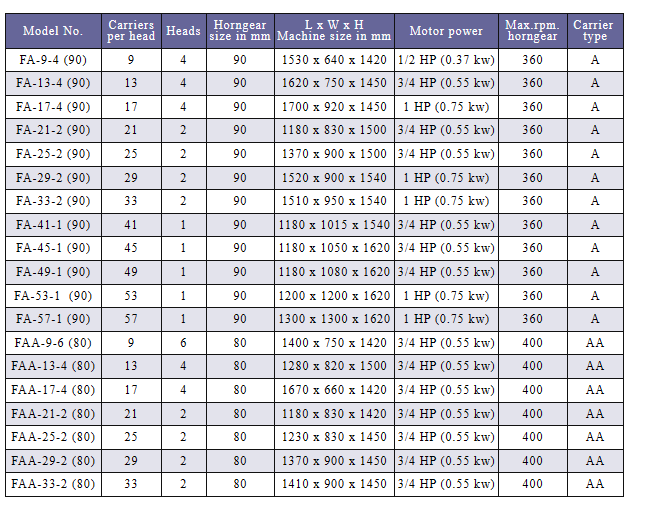

FA(90) / FAA(80) / Flat Braiding Machines







Model No.

Carriers

per head

Heads

Horngear

size in mm

L x W x H

Machine size in mm

Motor power

Max.rpm.

horngear

Carrier

type

FA-9-4 (90)

9

4

90

1530 x 640 x 1420

1/2 HP (0.37 kw)

360

A

FA-13-4 (90)

13

4

90

1620 x 750 x 1450

3/4 HP (0.55 kw)

360

A

FA-17-4 (90) 17

4

90

1700 x 920 x 1450

1 HP (0.75 kw)

360

A

FA-21-2 (90) 21

2

90

1180 x 830 x 1500

3/4 HP (0.55 kw)

360

A

FA-25-2 (90) 25

2

90

1370 x 900 x 1500

3/4 HP (0.55 kw)

360

A

FA-29-2 (90) 29

2

90

1520 x 900 x 1540

1 HP (0.75 kw)

360

A

FA-33-2 (90) 33

2

90

1510 x 950 x 1540

1 HP (0.75 kw)

360

A

FA-41-1 (90) 41

1

90

1180 x 1015 x 1540

3/4 HP (0.55 kw)

360

A

FA-45-1 (90) 45

1

90

1180 x 1050 x 1620

3/4 HP (0.55 kw)

360

A

FA-49-1 (90) 49

1

90

1180 x 1080 x 1620

3/4 HP (0.55 kw)

360

A

FA-53-1  (90) 53

1

90

1200 x 1200 x 1620

1 HP (0.75 kw)

360

A

FA-57-1 (90) 57

1

90

1300 x 1300 x 1620

1 HP (0.75 kw)

360

A

FAA-9-6 (80) 9

6

80

1400 x 750 x 1420

3/4 HP (0.55 kw)

400

AA

FAA-13-4 (80) 13

4

80

1280 x 820 x 1500

3/4 HP (0.55 kw)

400

AA

FAA-17-4 (80)

17

4

80

1670 x 660 x 1420

3/4 HP (0.55 kw)

400

AA

FAA-21-2 (80)

21

2

80

1180 x 830 x 1420

3/4 HP (0.55 kw)

400

AA

FAA-25-2 (80)

25

2

80

1230 x 830 x 1450

3/4 HP (0.55 kw)

400

AA

FAA-29-2 (80)

29

2

80

1370 x 900 x 1450

3/4 HP (0.55 kw)

400

AA

FAA-33-2 (80)

33

2

80

1410 x 900 x 1450

3/4 HP (0.55 kw)

400

AA







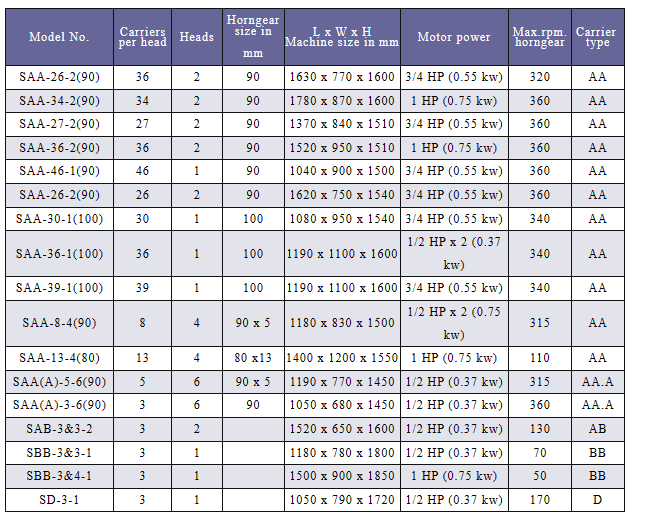

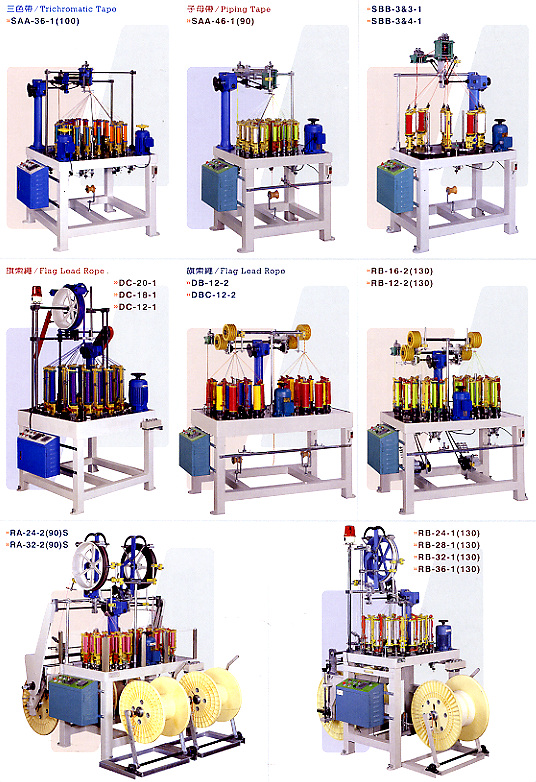

S-Series Specific Braiding Machines





Model No.

Carriers

per head

Heads

Horngear

size in mm

L x W x H

Machine size in mm

Motor power

Max.rpm.

horngear

Carrier

type

SAA-26-2(90)

36

2

90

1630 x 770 x 1600

3/4 HP (0.55 kw)

320

AA

SAA-34-2(90)

34

2

90

1780 x 870 x 1600

1 HP (0.75 kw)

360

AA

SAA-27-2(90)

27

2

90

1370 x 840 x 1510

3/4 HP (0.55 kw)

360

AA

SAA-36-2(90)

36

2

90

1520 x 950 x 1510

1 HP (0.75 kw)

360

AA

SAA-46-1(90)

46

1

90

1040 x 900 x 1500

3/4 HP (0.55 kw)

360

AA

SAA-26-2(90)

26

2

90

1620 x 750 x 1540

3/4 HP (0.55 kw)

360

AA

SAA-30-1(100)

30

1

100

1080 x 950 x 1540

3/4 HP (0.55 kw)

340

AA

SAA-36-1(100)

36

1

100

1190 x 1100 x 1600

1/2 HP x 2 (0.37 kw)

340

AA

SAA-39-1(100)

39

1

100

1190 x 1100 x 1600

3/4 HP (0.55 kw)

340

AA

SAA-8-4(90)

8

4

90 x 5

1180 x 830 x 1500

1/2 HP x 2 (0.75 kw)

315

AA

SAA-13-4(80)

13

4

80 x13

1400 x 1200 x 1550

1 HP (0.75 kw)

110

AA

SAA(A)-5-6(90)

5

6

90 x 5

1190 x 770 x 1450

1/2 HP (0.37 kw)

315

AA.A

SAA(A)-3-6(90)

3

6

90

1050 x 680 x 1450

1/2 HP (0.37 kw)

360

AA.A

SAB-3&3-2

3

2



1520 x 650 x 1600

1/2 HP (0.37 kw)

130

AB

SBB-3&3-1

3

1



1180 x 780 x 1800

1/2 HP (0.37 kw)

70

BB

SBB-3&4-1

3

1



1500 x 900 x 1850

1 HP (0.75 kw)

50

BB

SD-3-1

3

1



1050 x 790 x 1720

1/2 HP (0.37 kw)

170

D
